Endodontic Instrument Retrieval System
Intended Use
The BTR PEN, together with a compatible nitinol loop tip, is designed to safely remove fragments of broken endodontic instruments from the root canal.
Instrument Material and Handling
-
Stainless steel construction ensures corrosion resistance and durability.
-
Proper use and maintenance are essential to maximize instrument lifespan.
BTR PEN Usage
-
Stainless steel tool: Reusable; inspect before each use for contamination, cracks, bends, splits, or deep scratches.
-
Nitinol loop tip (BTR TIP): Single-use only; delivered non-sterile and must be sterilized before use.
-
Do not sterilize with protective cup
-
Store in a clean, dry environment
-
Dispose responsibly after use or return to the manufacturer
-
BTR PEN Calibrator
-
Reusable instrument; disinfect with isopropyl alcohol before each use.
-
Inspect for blunting or bending, as this can affect loop calibration and instrument performance.
Cleaning and Sterilization
-
All instruments are delivered non-sterile.
-
Clean new instruments with a soft bristle brush and cleaning solution (e.g., ANIOSYME X3) or ultrasonic cleaning.
-
Rinse with purified water and dry thoroughly before sterilization.
-
Disassemble BTR PEN before sterilization.
-
Recommended autoclave sterilization:
-
134°C for 5 minutes
-
121°C for 20 minutes
-
-
Follow national sterilization requirements.
Precautions:
-
Adhere strictly to cleaning and sterilization guidelines.
-
Report any serious incidents to the manufacturer and local competent authorities.
Storage
-
Store at 5–30°C with relative humidity below 70%.
-
Proper storage ensures instrument longevity and performance.

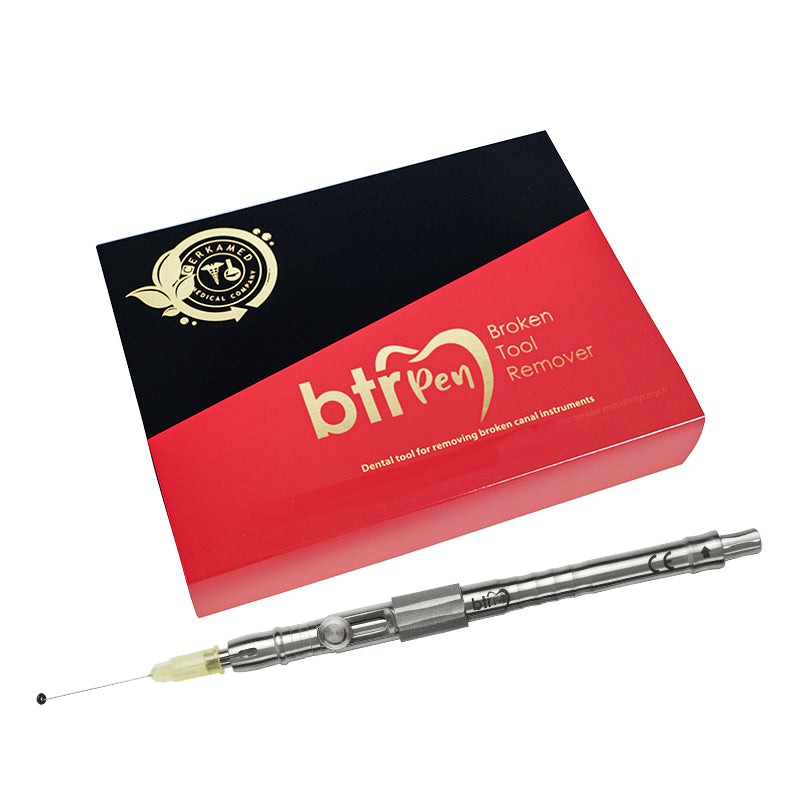

Package Contents
-
BTR PEN: 1 stainless steel tool
-
BTR Calibrator: 1 piece
-
BTR TIP Ø 0.3: 5 pieces (available sizes: Ø 0.3 mm, Ø 0.4 mm, Ø 0.5 mm)
-
BTR Spring: 2 pieces (soft and hard; middle spring fixed on device)
-
Silicone BTR O-Ring: 3 pieces
Non-sterile product
⚠️ For professional dental use only. Please read the attached instructions carefully before use.
